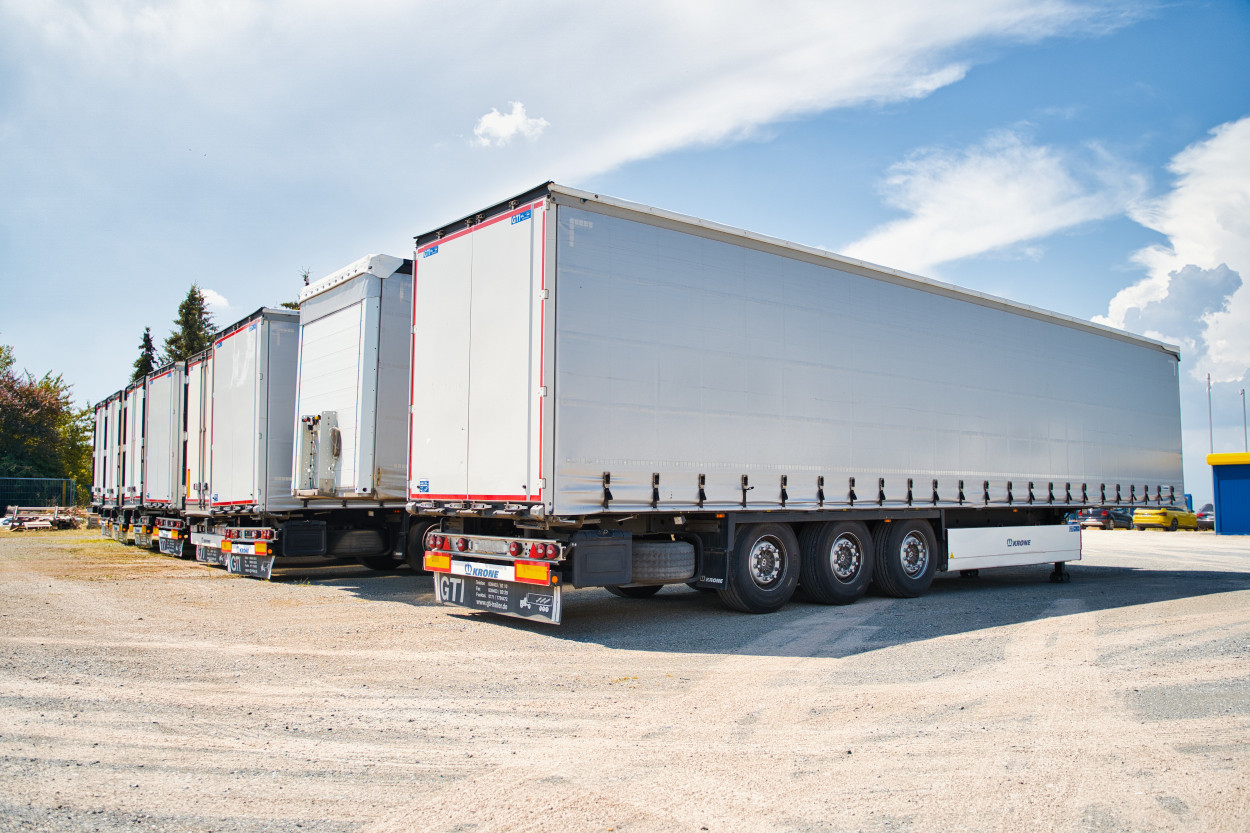

Curtainsider semi-trailer
Basic equipment:
- 3-axle unit SCB Rotos
- Air suspension
- Lift axle
- Electronic braking System with Roll Stability Program or Roll Stability Support
- Floor accessible by forklift
- Support winches
- 6 tires (385/65 R22,5)
- Continuous lashing holes in the outer frame and an additional 13 pairs of lashing rings on the Sliding wall coil system

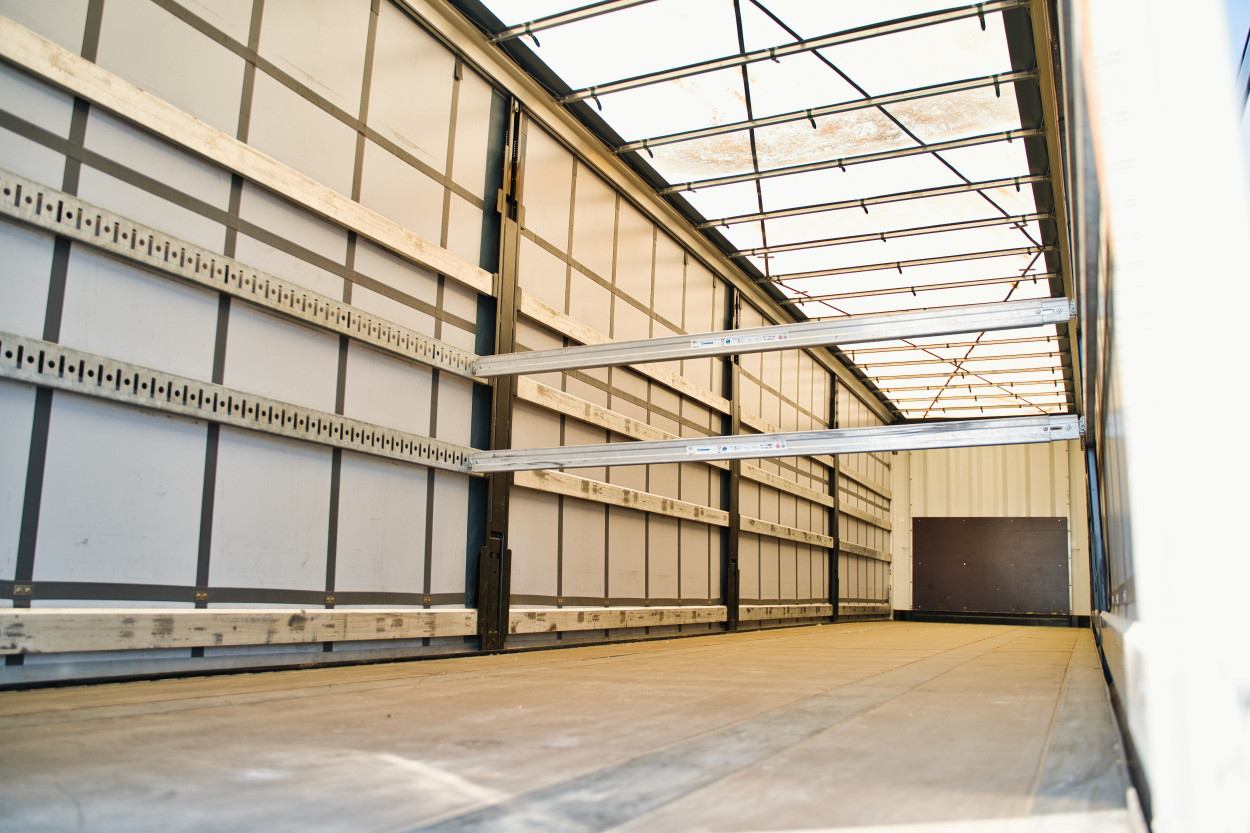

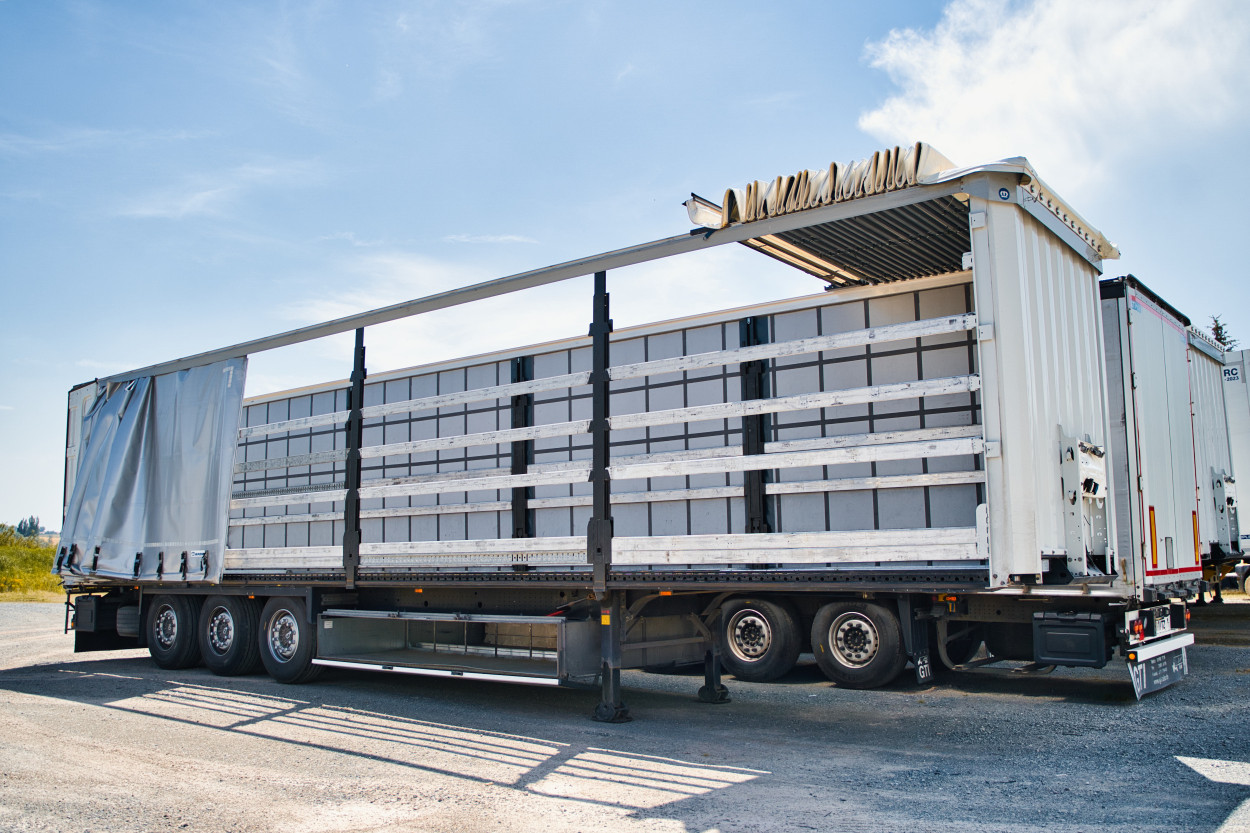

- Sliding curtain structure
- Sliding roof
- 3 sliders per side

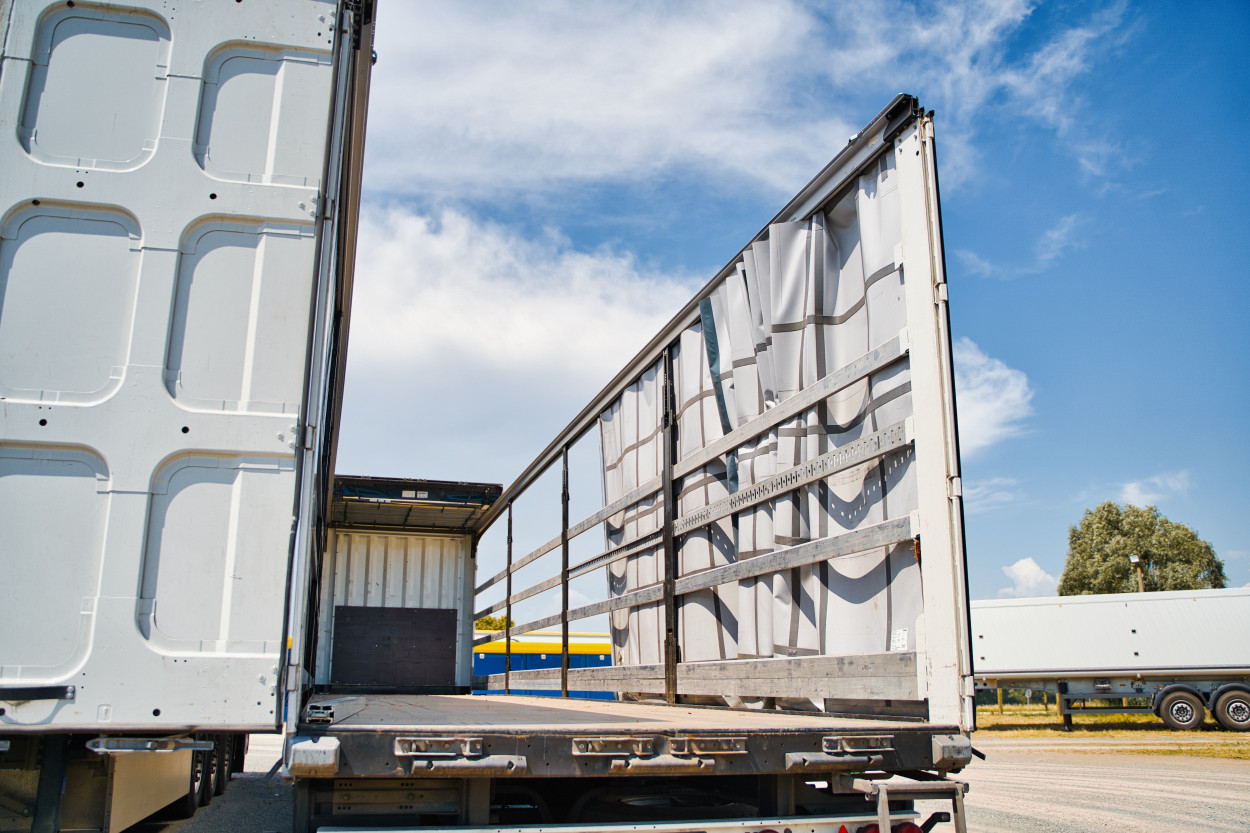

- Rear portal with 2 espagnolette locks per sash
- Load securing certificate in accordance with EN 12642 Code XL, DCE 9.5 and beverages

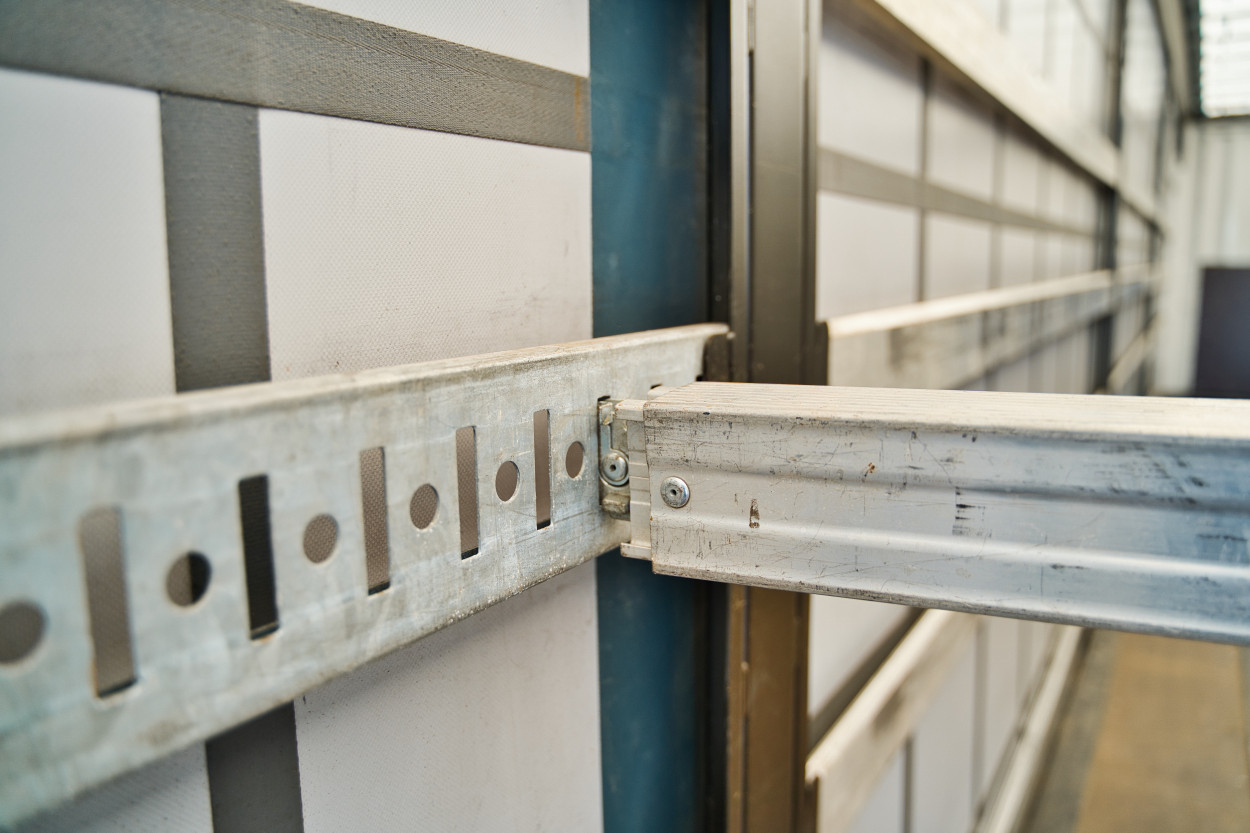

- Flexible load securing system
- Closed pallet box for e.g. 24, 30, 32 Euro pallets
- Toolbox(es)

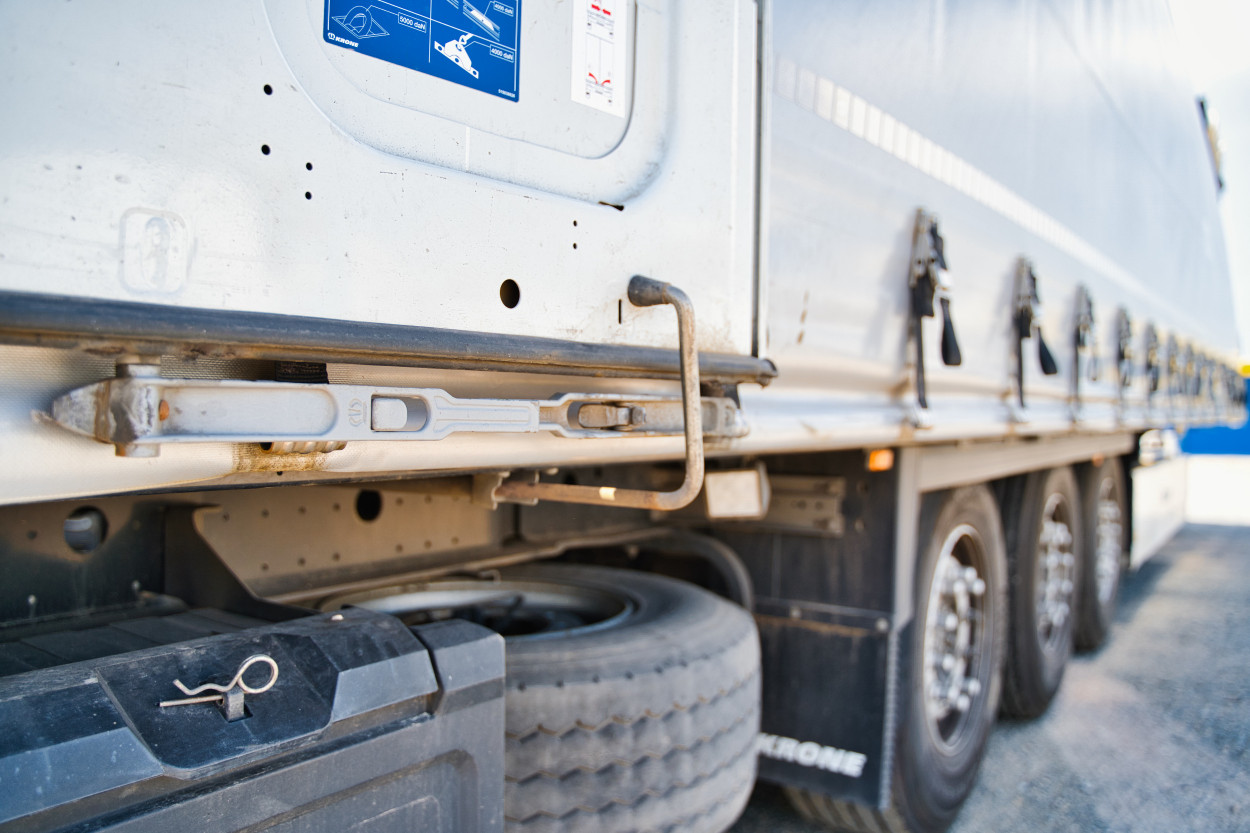

- Double spare wheel holder
- Trailer info system incl. brake pad wear indicator, axle load indicator, mileage etc.
- Tire pressure control system
Measurements:
- Loading area approx. 13.620 mm x 2.480 mm
- Overall height front 2,730 mm rear 2,780 mm
- Saddle height, unloaded approx. 1,110 mm
Weights:
- Permissible total weight 36.000 / 39.000kg
- Unloaded weight approx. 6.861 kg
- Payload 29.139 / 32.139 kg
- Saddle load 12.000 / 15.000 kg
- Axle load 24.000 / 27.000 kg
Color scheme:
- Galvanized chassis for SCS, KTL+powder for ProfiLiner
- Body in RAL (silver or anodized in the front)
- Tarpaulin in RAL (silver in the front)
Delivery time:
- by agreement
As an option:
- RSAB or AIR pipe to prevent ice formation on the roof tarpaulin
- JOLODA system variations for the paper transport
- Coil transportation system
- We have many more specialties to offer – please contact us
